G1 IoT Gateway

CPU Quad ARM A53 | 1.5 Ghz | 32 Bit
OS (Preinstalled) Ubuntu Mate
USB USB 2.0 hosts x 4, Type A connector
DRAM DDR2 SDRAM 256MB
Main Storage 8G Micro SD
Storage Expansion Micro SD expand to 16G/32G/64G
Ethernet Port 12 x 10/100/1000MBase-T RJ45, Auto Negotiation, Auto-MDI/MDIX
System LED 1 x PWR: Green On 2 x Ethernet Ports: Link: Green On, Activity: Green Blinking
Reset 1 x Reset button (Programmable)

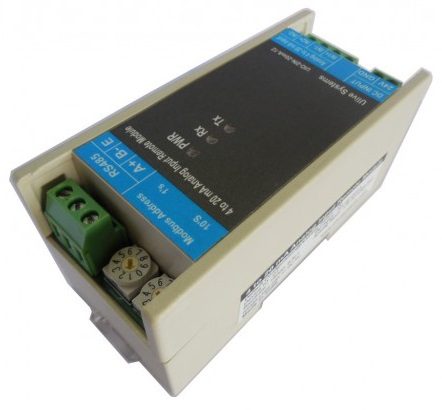

4 CHANNEL 4-20MA ANALOG DATA-LOGGER

Product Dimensions 110mm x 50mm x 55mm (L x W x H)
Suitable for both Din Rail and Wall Mountable
Sensor open indication
Complete range of baud rate settings supported
Convenient address selection rotatory switch from 1 – 99 Address
Resolution at 0.005 mA
Individual Channel offset calibration
Modbus RS-485 Protocol Interface.
Four Channel 4 ~ 20mA 12 bit Resolution ADC

TEMPERATURE & HUMIDITY DATA-LOGGER

Produt Dimensions102mm x 72mm x 23mm (L x W x H)
Suitable forboth Din Rail and Wall Mountable
Input Supply5V (1A-2A)
Wi-Ficonnectivity (2.4 G)

4 CHANNEL DIGITAL DATA-LOGGER

Produt Dimensions 121mm x 80mm x 57mm (L x W x H)
Suitable for both Din Rail and Wall Mountable
Input Supply 10V-24V (1A-2A)
Wi-Fi connectivity (2.4 G)
No. of Digital Inputs 4
